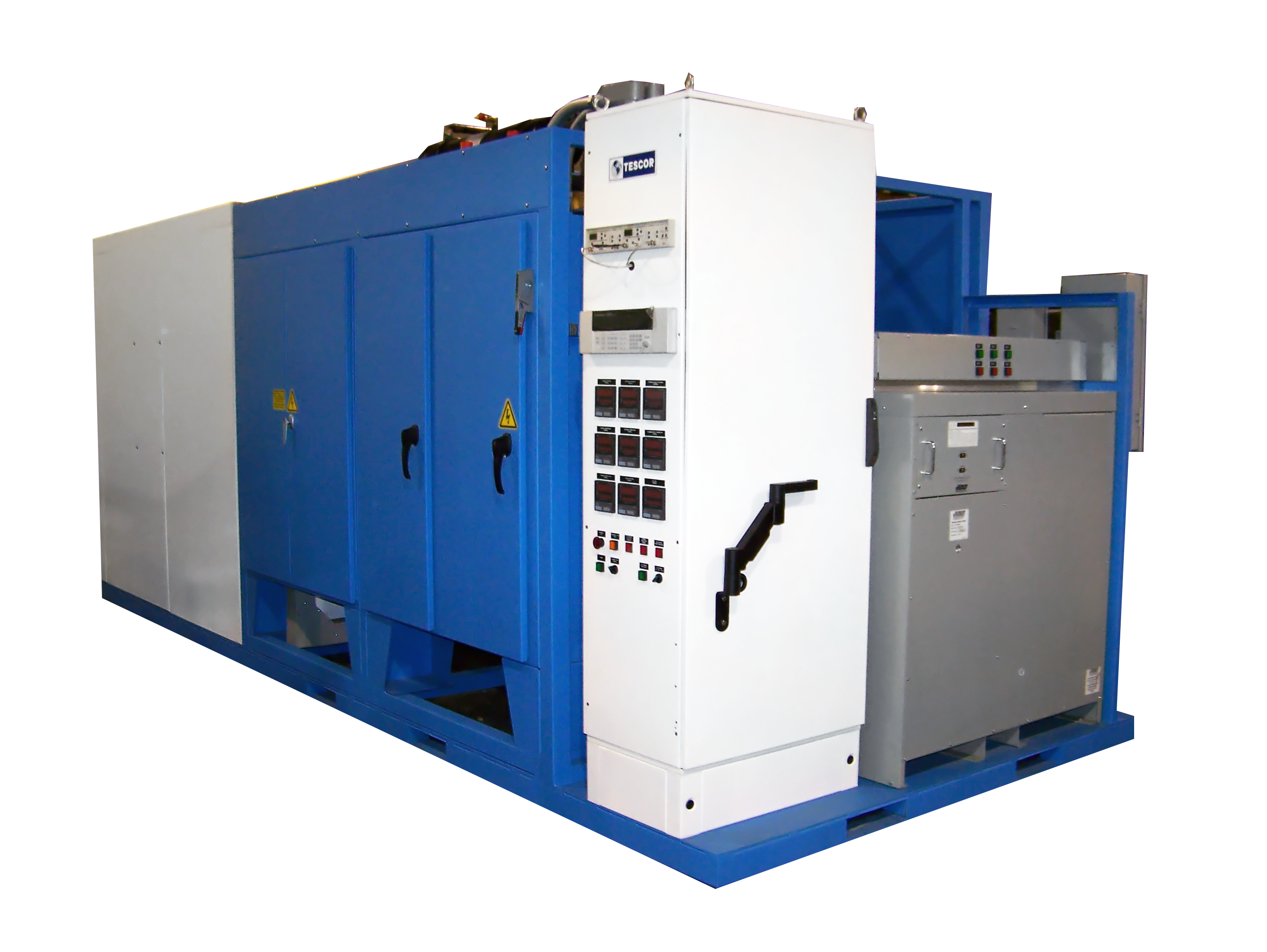

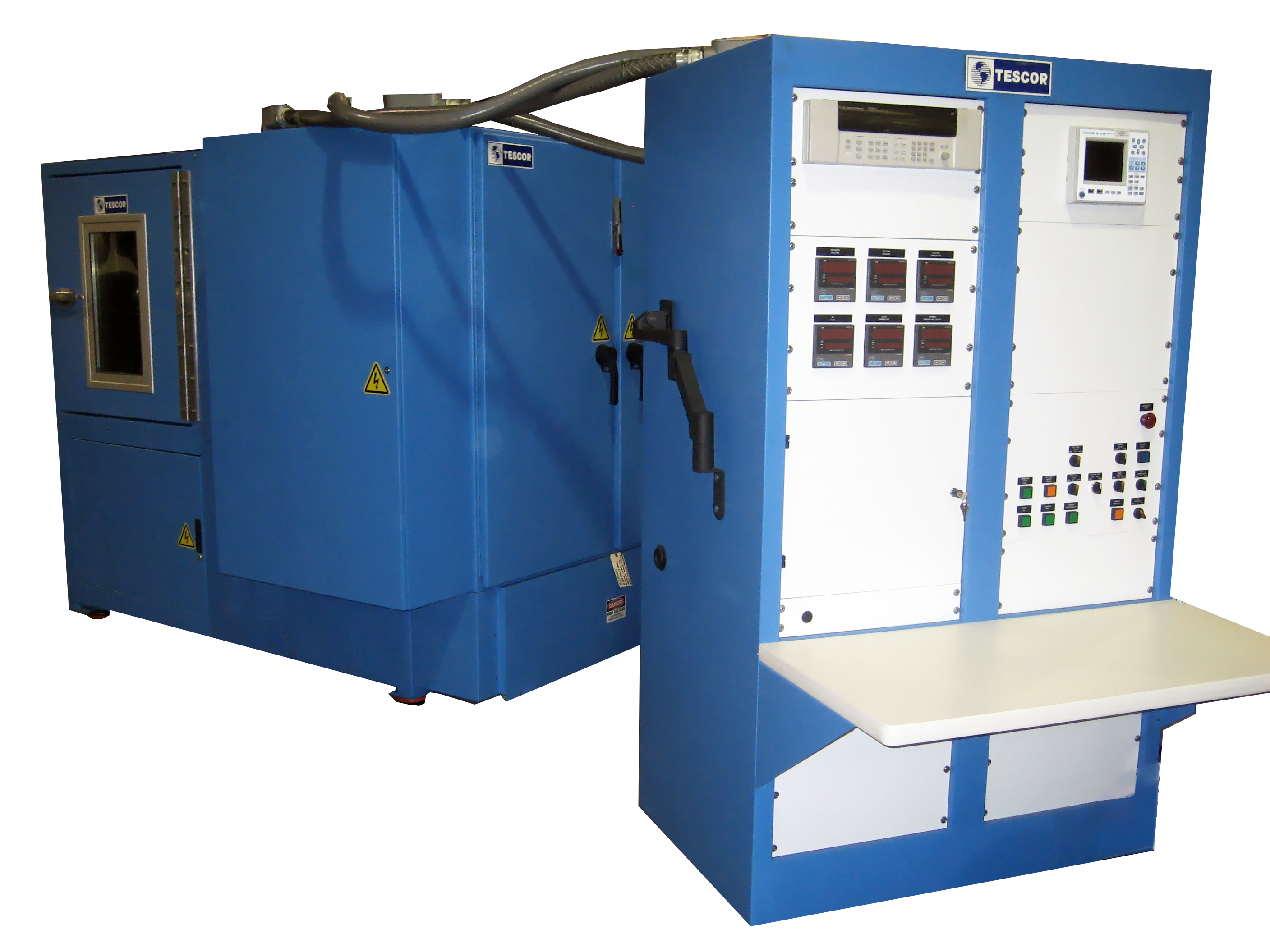

LInk Engineering Company's compressor calorimeter, as shown here, offers control over parameters such as liquid temperature, compressor voltage and discharge and suction pressure.

Compressor Calorimeter

Product Overview:

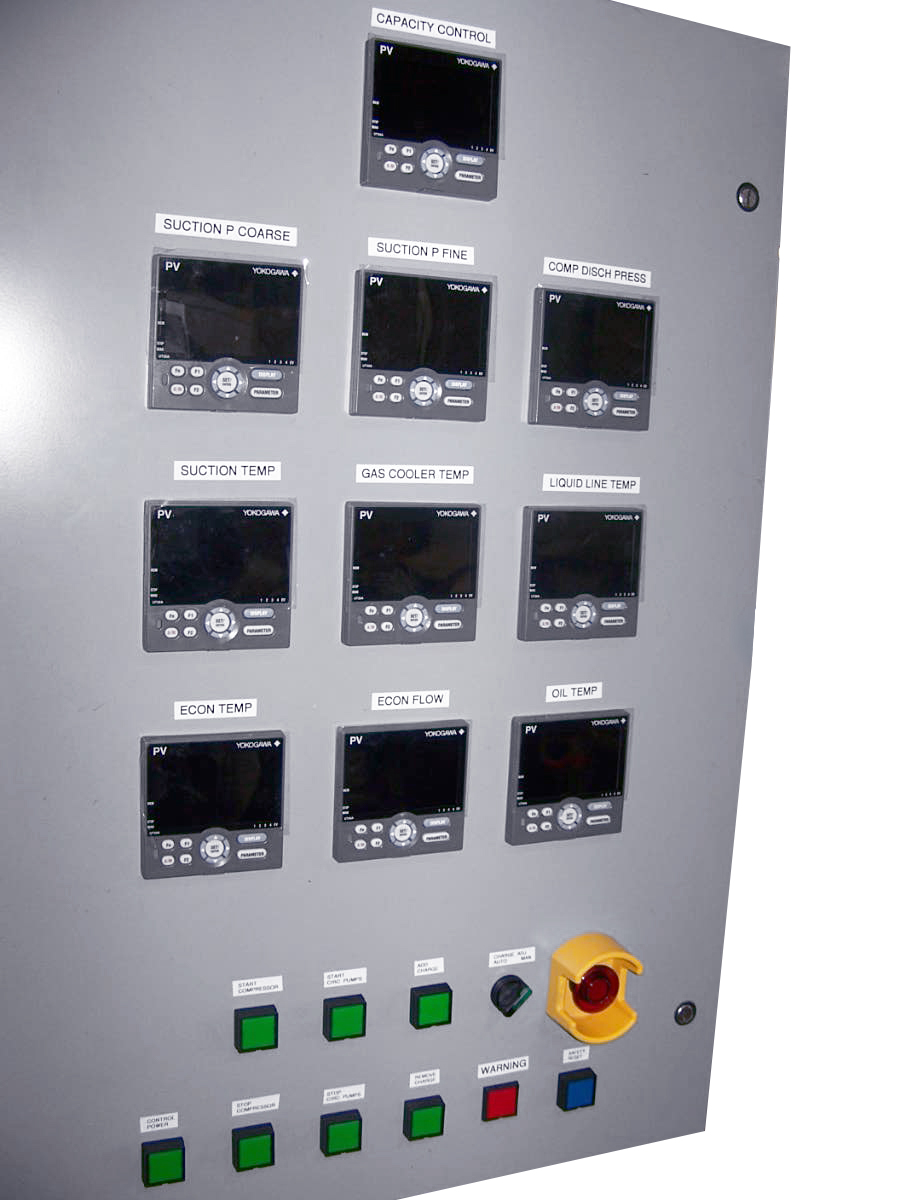

Measure compressor capacity more accurately by utilizing the best instrumentation and technology available to provide the most accurate results for your application needs. LINK’s calorimeter system provides the customer with control over parameters such as discharge pressure, liquid temperature, suction temperature, suction pressure, compressor ambient chamber and compressor voltage. LINK also offers a variety of features including a manually controlled calorimeter, a semi-automatic calorimeter with a digital recorder, and an oil circulation control loop for real time oil flow rate control. LINK has the ability to build calorimeters that fit your industry, application, or component.

Key Benefits:

Heat balances within ±2% with a repeatability of ±1%
2% agreement or better measured mass-flow vs. calculated mass-flow

Applications and Test Types:

Compressor R&D
Certification programs
Energy efficiency audits
Life cycle testing
Oil concentration/flow rate testing
