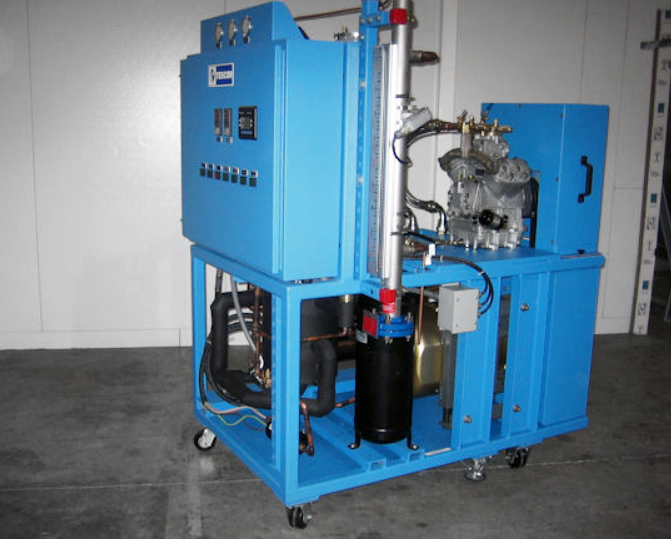

Compressor Life Cycle Test Bench

Product Overview:

When you’re testing compressor endurance under extreme conditions, you can rely on LINK’s exceptionally durable compressor life cycle test benches and compressor slug test benches. These benches are designed for quick compressor changeout and reliability of operation.

Key Benefits:

Systems can be provided to test one compressor or multiple compressors.
Based on the specific needs of the end user, the test stands can be configured to control parameters such as:
- Compressor speed
- Evaporator heat load
- Discharge pressure
- Suction pressure, etc.

Applications and Test Types:

Hermetic
Semi-hermetic
Rotary
Scroll compressor
