Equipment

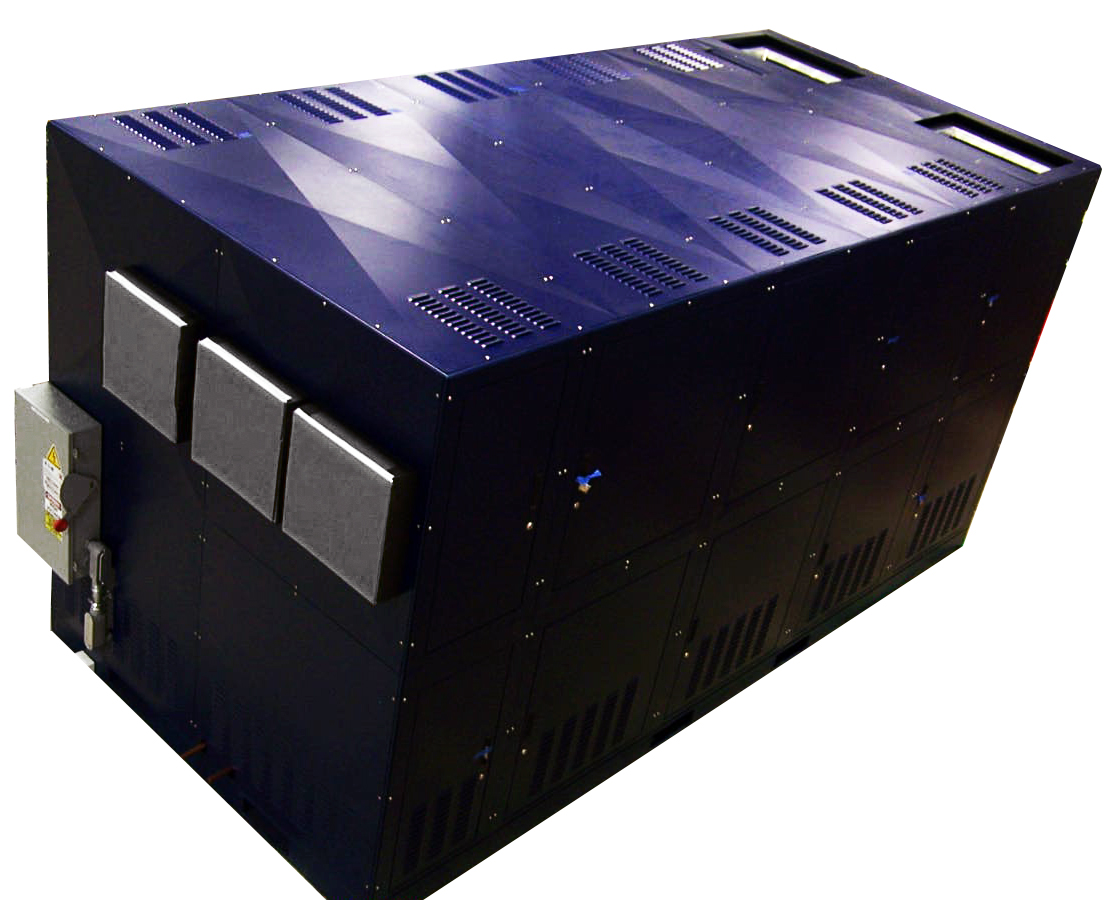

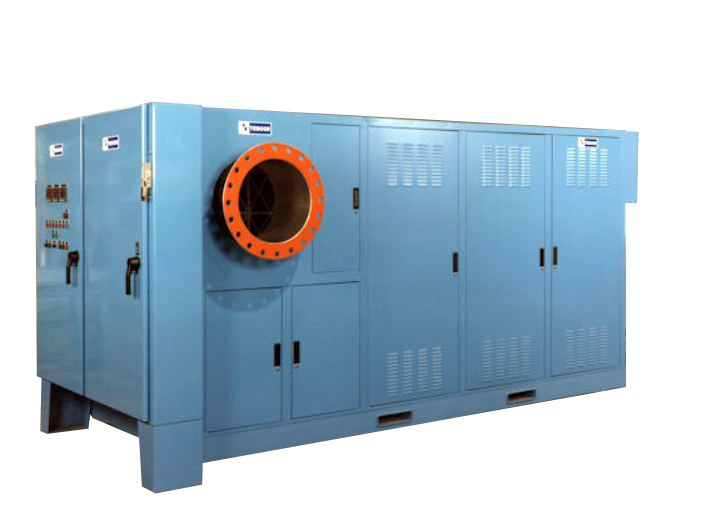

For maximum accuracy, repeatability, and stability, complete all of your environmental testing with our conditioned air supply system, shown here.

Conditioned Air Supply

Product Overview:

For maximum accuracy, repeatability, and stability, complete all of your environmental testing with our conditioned air supply systems. Delivering air at precisely controlled temperatures, humidity, and pressure conditions, our systems are able to provide for a wide range of applications and industries. Trust LINK to build the conditioned air supply you need. The Conditioned Air Supply System consists of an Air Conditioning Unit (ACU) and a Pressure Control Unit (PCU). The ACU draws in outdoor air, cools and dehumidifies the air, and then re-heats and injects steam to regulate temperature and humidity levels. The PCU utilizes a receiving chamber and linear control valves to feed the correct amount of air to the test unit while maintaining a constant flow of air through the ACU to maintain maximum stability.

Key Benefits:

High temperature and RH rangeability in one system
Exceptional control tolerances
24/7 run time with no process air delivery interruption available at all controlled conditions
Market leading energy efficiency design options available on most configurations

Applications and Test Types:

Combustion air supply for engine development
Engine emissions certification testing
Dilution tunnel air supply
Altitude compensation for engine development testing
Fuels and lubrication development
Automotive climate control component development
Central air supply for multiple test cells
Special air conditioning systems for environmental test chambers
Air reconditioning units for psychrometric test cells
Compound storage rooms for the pharmaceutical industry
